In-house testing laboratory supports routine, type and special tests in line with IEC, IS and utility-specific requirements. Testing is integrated across the manufacturing cycle, from incoming material inspection and in-process validation to final unit testing. Every transformer is validated through a defined test protocol before dispatch.
High-Voltage Testing Infrastructure

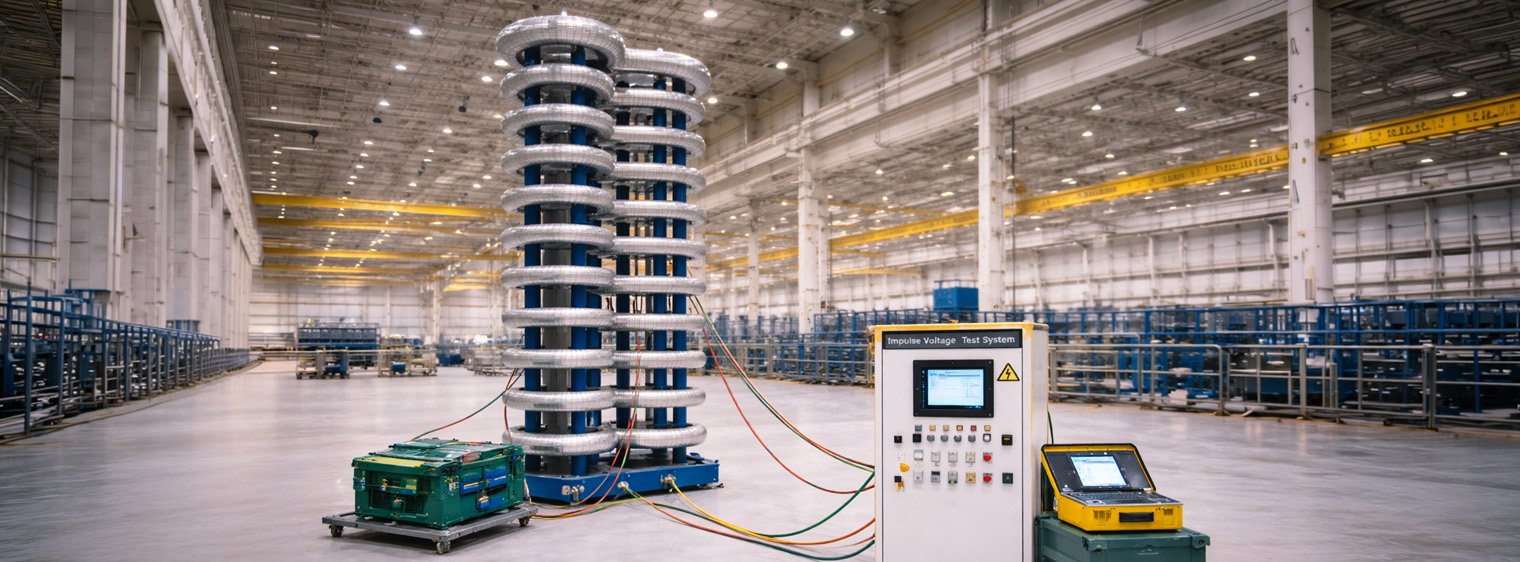

Impulse voltage testing for lightning and switching impulse simulation
2.5 MVA motor generator set for load testing
300 kV flash test transformer
Multi-channel partial discharge measurement
Capacitor banks for reactive power testing
IDT and DT Testing Systems
Flash testing up to 200 kV
HT and LT capacitor banks for load simulation
High-current test set-ups and precision panels
Electrical and Diagnostic Testing
Turns ratio measurement (TTR)
Insulation resistance up to 10 kV
Tan delta and capacitance measurement
Winding resistance measurement
Sweep Frequency Response Analysis (SFRA)
Performance Validation
Heat run and thermal performance testing
No-load and load loss measurement
Noise level measurement
Efficiency analysis
Test Protocol Coverage
Routine
Winding resistance, turns ratio, insulation resistance, no-load and load loss
Type
Temperature rise, impulse withstand, short circuit withstand
Special
Partial discharge, SFRA, tan delta, noise level
Standards
As per IEC 60076 | IS 2026 | IS 1180 | Utility-specific specifications
